Skyner delivers cutting-edge drone detection and jamming systems ensuring safety, privacy, and control across all environments.

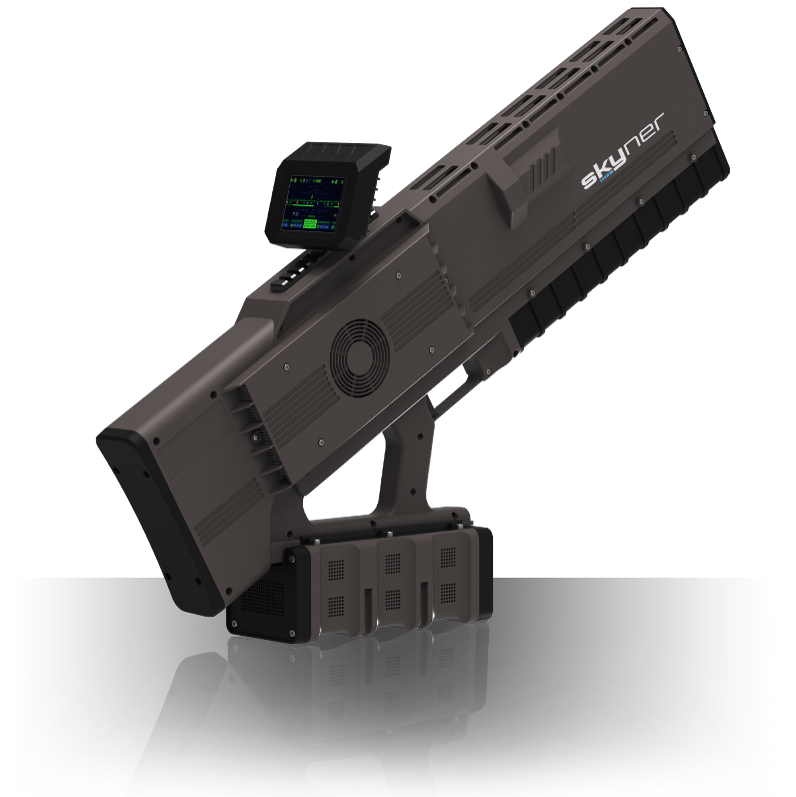

Skyner Raptor SJ
Skyner Raptor SJ jamms drones through overpowering GPS satellite signals locally so that a receiver can no longer operate. Raptor supports combined narrow band low-power precision jamming and wide band high-power jamming. Default jamming bands 900MHz, 1.5GHz, 2.4GHz, 5.2GHz, 5.8GHz, and customization available.

≤5.5kg (within battery), ≤4kg (without battery)

Length: 750±2mm, Width: 554±2mm, Height: 100±2mm

Detection distance: ≤3km
Positioning Distance: ≤3km
Jamming Distance: ≤2km

Forcing the drone to land or return by jamming the transmission link, control link and navigation signal (the drone needs to support the force landing or return function).

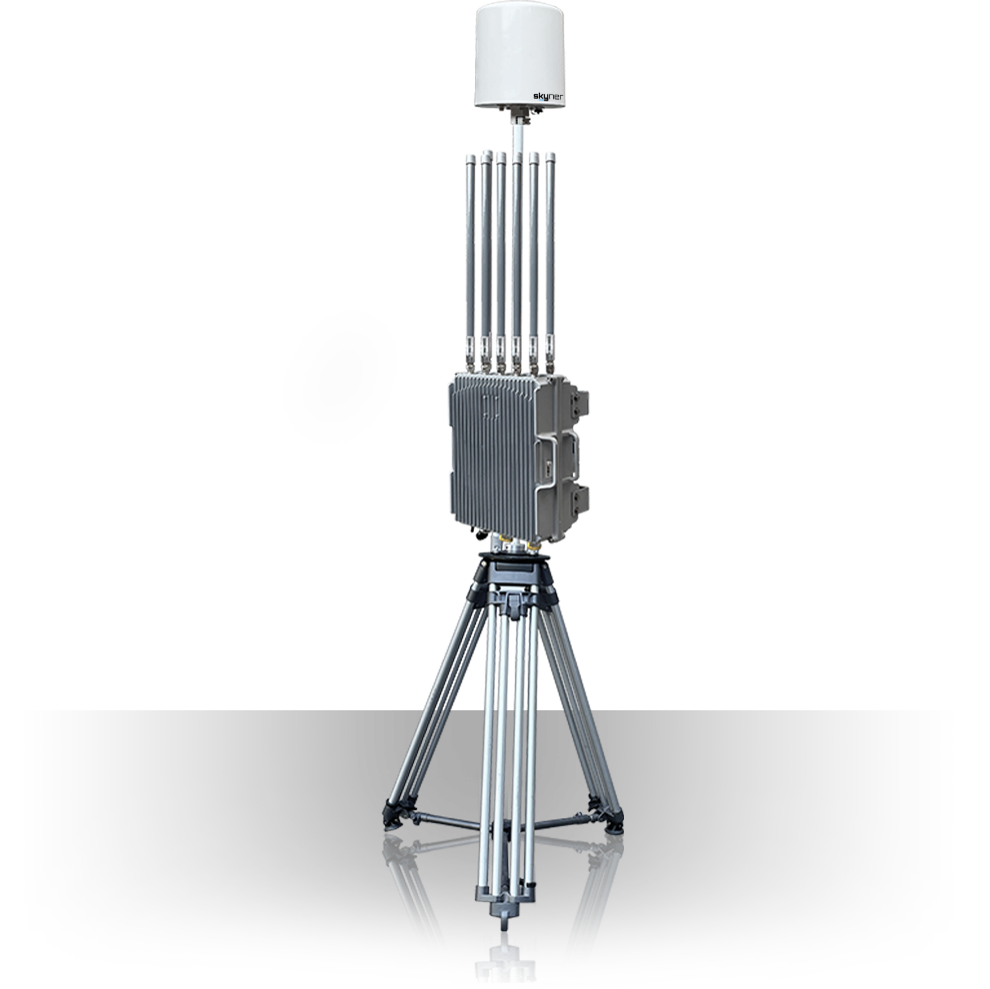

Skyner Base SDJ
Incorporates all features as Skyner Base SD model with an addition of Jamming functionallity. Forcing the drone to land or return by jamming the transmission link, control link and navigation signal, it spans the jamming distance up to 4 kilometers.

≤31.5kg (without antenna)

Length: 505±2mm, Width: 455±2mm, Height: 238±2mm

Detection Height: 0 ~ 1200m
Detection Angle: Horizontal: 360°, Pitch: -90°~ +90°

Detection of wireless signals within 25MHz ~ 6000MHz, the detection frequency band can be set. Instantaneous detection bandwidth ≥ 60MHz
Skyner Base J
Skyner Base J is a high-performance RF jamming device designed to detect and neutralize drones across a wide range of frequencies. It combines narrow-band precision jamming with wide-band high-power jamming to cover 95% of drone communication and navigation signals. The system supports simultaneous jamming of up to 30 drones and works seamlessly with radar or RF detection systems for targeted action. With a drone library that includes over 98% of commercial and DIY drones, it ensures reliable defense in diverse low-altitude security scenarios.
The device is suitable for harsh environments, offering a durable IP66-rated build and operating in temperatures from -40°C to +55°C. It enables selective jamming without affecting non-target drones, providing flexible and intelligent protection.

≤25kg (without antenna)

Length: 480±2mm, Width: 400±2mm, Height: 245±2mm

Transmitting Frequency: 1st Channel: (2400±10)MHz~(2500±10)MHz. For other channels please check specs.
Transmitting Power: 1st Channel: (50±10)dBm
For other channels please check specs.

7 jamming antennas & 1 GPS antenna

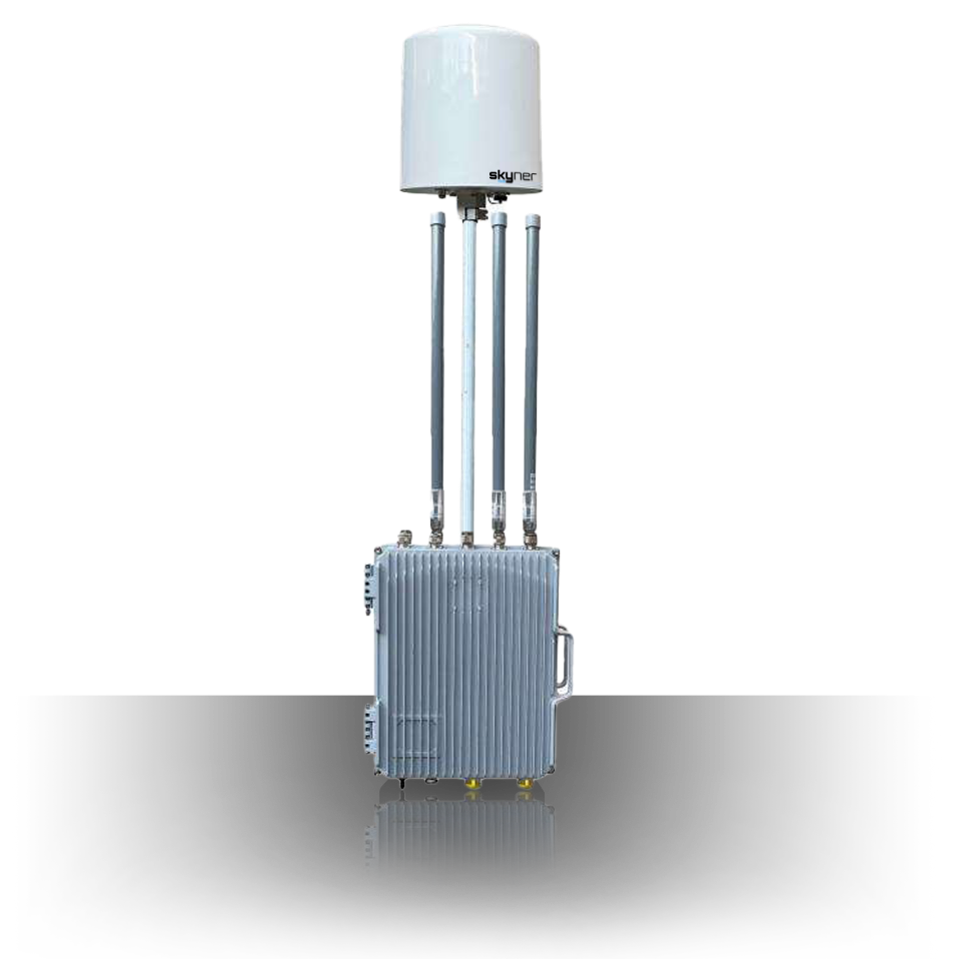

Skyner Base SD
All-in-One system has drone signal detection and recognition functions, and the device can support the detection of DJI, Autel, Hubson, Parrot, 3DR,Zhendi, Wi-Fi drone, DIY drone (analog image transmission), etc. With geo location function, it can display the working frequency band, brand number, electronic fingerprint ID (serial number of the fuselage), bearing, distance, latitude and longitude, flight altitude and other information of the drone in the detection list, and it can display identification icons and flight tracks on the electronic map.

≤14kg

Length: 410±2mm, Width: 330±2mm, Height: 190±2mm

Transmitting Frequency: 1st Channel: (2400±10)MHz~(2500±10)MHz. For other channels please check specs.
Transmitting Power: 1st Channel: (50±10)dBm
For other channels please check specs.

Detection Angle: Horizontal: 360°, Pitch: -90°~ +90°

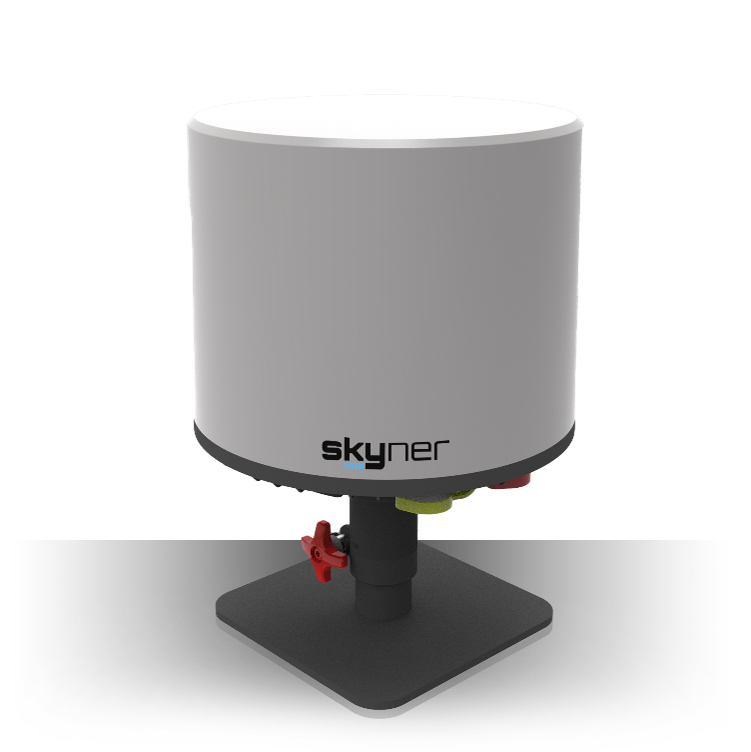

Skyner Base S
Skyner Base S is a stationary RF sensor capable of detecting and geolocating drones 24/7 in any weather condition. There is no need to triangulate sensors, as detection is performed via wireless signal inspection and extensive drone library, providing a flexible, cost-saving solution for a variety of use cases.
The device can support the detection of DJI, Autel, Hubson, Parrot, 3DR, Zhendi, Wi-Fi drone, DIY drone (analog image transmission), etc.

≤3kg

Diameter: (215±2)mm, Height: 280±2mm

Detection Height: 0 ~ 1000m
Detection Angle: Horizontal direction: 360°, Pitch direction: -90°~ +90°

Detection of wireless signals within 25MHz ~ 6000MHz, the detection frequency band can be set.

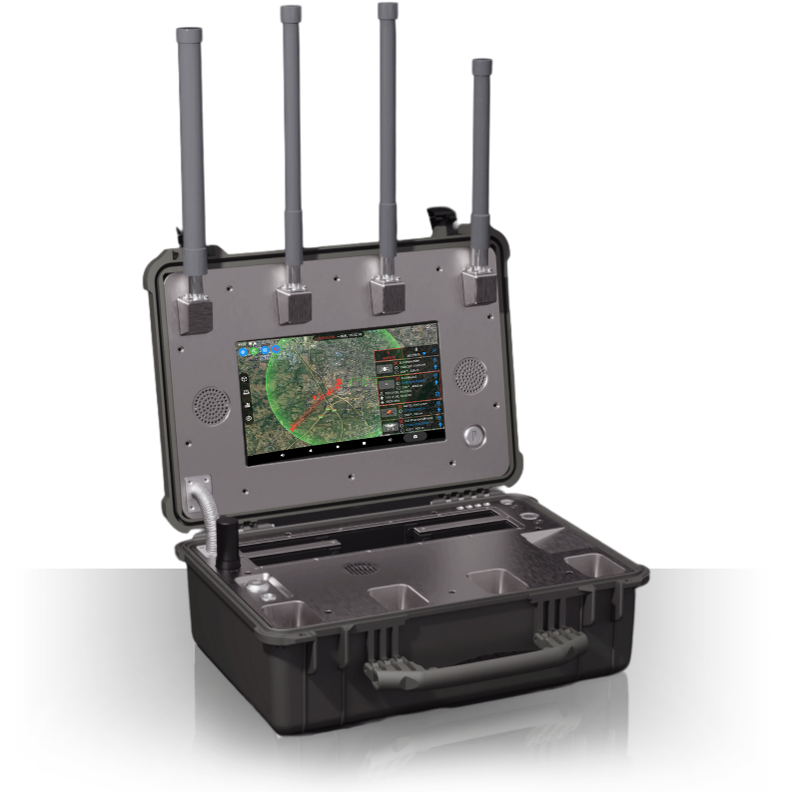

Skyner Mobile S
Due to early warning the product suits event monitoring, public event safety, private security, law enforcement, and other scenarios. Due to its compact format and easy-to-operate system, users can simply grab and go with an innovative and portable solution. A touchscreen display provides real-time information on the drone’s make, model, serial number, flight time, altitude, and geolocation.

≤14kg (include antennas)

Length: 470±2mm, Width: 357±2mm, Height: 176±2mm

Detection Height: 0 ~ 1000m

Frequency Range: 70MHz~6000MHz
Sensitivity: ≤-105dBm (Operating Frequency 1040MHz)
